See application notes BEFORE ordering!
NOTE: Does NOT Ship To California.

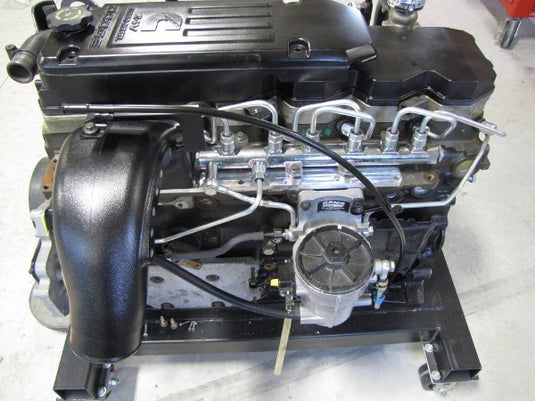

The Mega-Rail System includes everything needed for installation of the entire fuel rail system from the larger 6.7L applications onto the 5.9L Cummins. This simple bolt on package gives the 5.9L Cummins an edge in airflow and fueling like never before. Finally you can get the most from your modified injection pump and performance injectors!
Using our Mega-Flo Intake Manifold, Air-Boss 67 plenum and factory Bosch HPCR parts we have created a package that is reliable, easy to install, and out flows any other parts combination on the market. If you're pushing the envelope on 5.9L Cummins performance the Mega-Rail kit can fuel it.
Benefits of the Mega-Rail System:
• 50% increase in fuel rail size – Perfect for modified CP-3’s
• 50% increase in fuel rail feed line size – Matched to rail size
• 50% increase in injector line size – Handles even the largest injectors
• 50% increase in crossover tube size - Removes the final restriction in the CR system
• 3000 psi higher relief valve pressure – No need for rail plugs, we leave the safety in the system
• 110% increase plenum entrance area – Over double the air entrance area at the plenum
• 20% larger intercooler piping - 3.50” Intercooler piping and intake manifold vs. 3.00” stock
• 100% Brand new fuel rail, injector lines and crossover tubes - No concerns over used or modified parts
• 100% Bolt-on installation - It doesn't get any easier than this!
The GDP Mega-Rail System is a complete package and does not require additional parts to be purchased. For those customers who would like to supply their own rail, lines and crossover tubes we offer the Mega-Rail Installation Kit.
Mega-Rail System Includes:
GDP Mega-Flo Intake Manifold
Air-Boss 67 Billet Intake Plenum
3.50" Intercooler Pipe & Boots
New Bosch 6.7L Fuel Rail (complete)
New Cummins 6.7L Fuel Injector Lines
New D-Tech 6.7L Crossover Tubes
CP-3 Return & Fuel Rail Return Lines
Rail Pressure Sensor Extension Harness

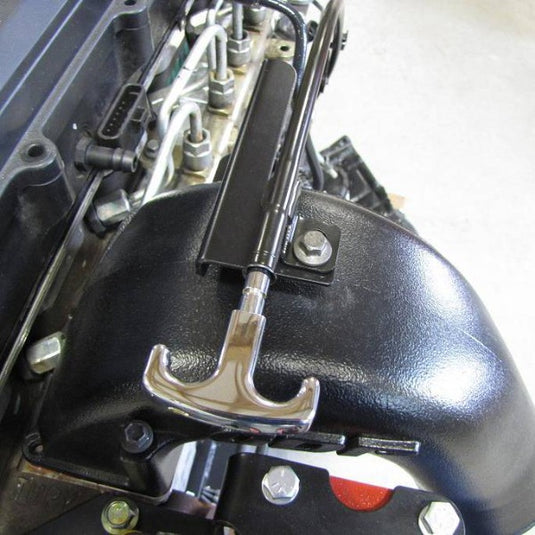

Engine Oil Dipstick Bracket
All Required Hardware & Gaskets
Note 1: This conversion kit eliminates the factory grid heater but we do offer a grid heater option.
Note 2: ONLY compatible with single CP-3, Fleece or ATS 6.7L twin CP-3 kits!
Note 3: If you intend to run this kit with twin CP-3's you MUST use an ATS or Fleece kit intended for the 6.7L applications. This kit will not fit trucks equipped with a twin pump kit intended for use on a 5.9L application.
Note 4: The intake manifold in this kit has been machined for 5.9L Cummins applications only. It will NOT work on the newer 6.7L engine.
Mega-Rail tips, tricks and myths
Thru the course of installing the Mega-rail System we have come across a few things that you may find useful.
First is the rail pressure sensor. With minor electrical connector modification the stock 6.7L rail pressure sensor can be used on the 5.9L trucks. Due to voltage mapping differences the stock 5.9L rail pressure sensor reads roughly 13% higher than the stock 6.7L sensor at the same voltage. This can be used to your advantage if you are careful.
By using the 6.7 pressure sensor on the 5.9 you can raise rail pressure approximately 13% without using a pressure box. For example, at WOT this equates to 24,860 psi actual at an ECM reported 22,000 psi. At idle reported pressure would be 5000 psi with actual being 5,650 so the difference is very small. At a reported cruise pressure of 8000 psi the actual would be 9,040 psi and this small increase is good for mileage. Since rail pressure is in essence "fooled" you will need a 6.7L rail pressure gauge connected directly to the sensor to see actual rail pressure readings.
Now, for the warnings and disclaimers...
Use the 6.7L rail pressure sensor at your own risk! Do not use the 6.7L rail pressure sensor if you are running a pressure box! If your tuner of choice has a rail pressure adjustment setting we recommend running the tuner at the "stock" pressure setting. Most tuners increase rail pressure to some degree. When combined with the 6.7L sensor rail pressures can get out of hand quickly. When using the 6.7L sensor always monitor actual rail pressure with a standalone 6.7L rail pressure gauge.
Next up is the grid heater. There has been some talk of using the stock 6.7L grid heaters (with the Mega-Rail kit) on the 5.9L head. The stock 6.7L grid heater will NOT fit the plenum opening of the 5.9L head without modification to a small casting area under the plenum cover. It can be made to work but minor grinding will be required. You are much better of using our throttle valve style grid heater. It's 100% bolt-on and uses Cummins heating elements.
We always recommend using new parts when working on the HPCR fuel systems. However, if you are looking to save some money, there are many sources for used 6.7L rails and injector lines. Wrecking yards and core supply shops have good inventory levels of used 6.7L parts now and can save you some money over buying a brand new rail and lines. Using a Mega-Rail Installation kit and a used rail setup is a great way to make big power on a budget.
